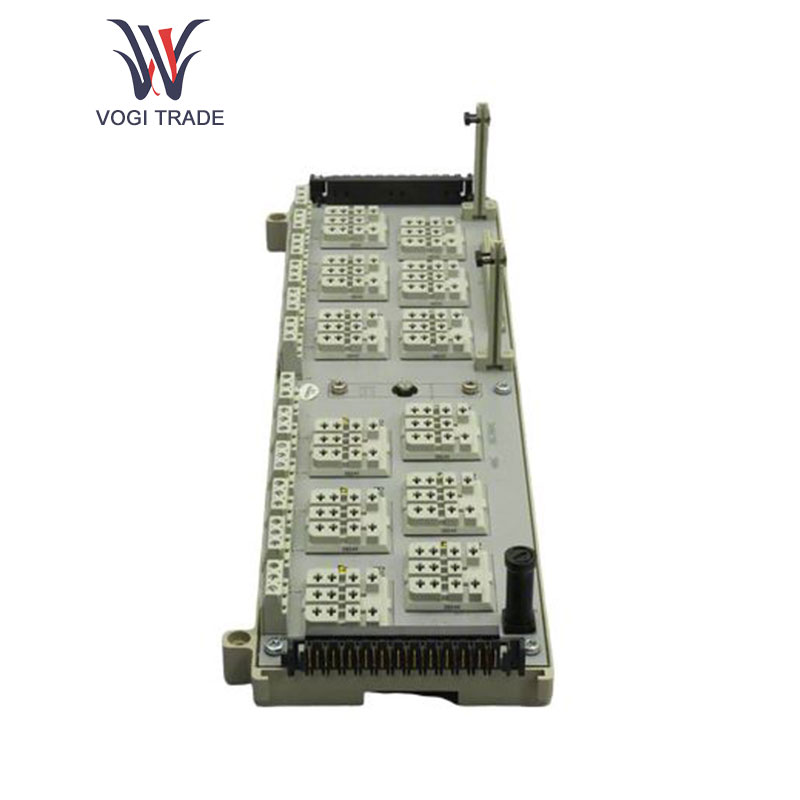

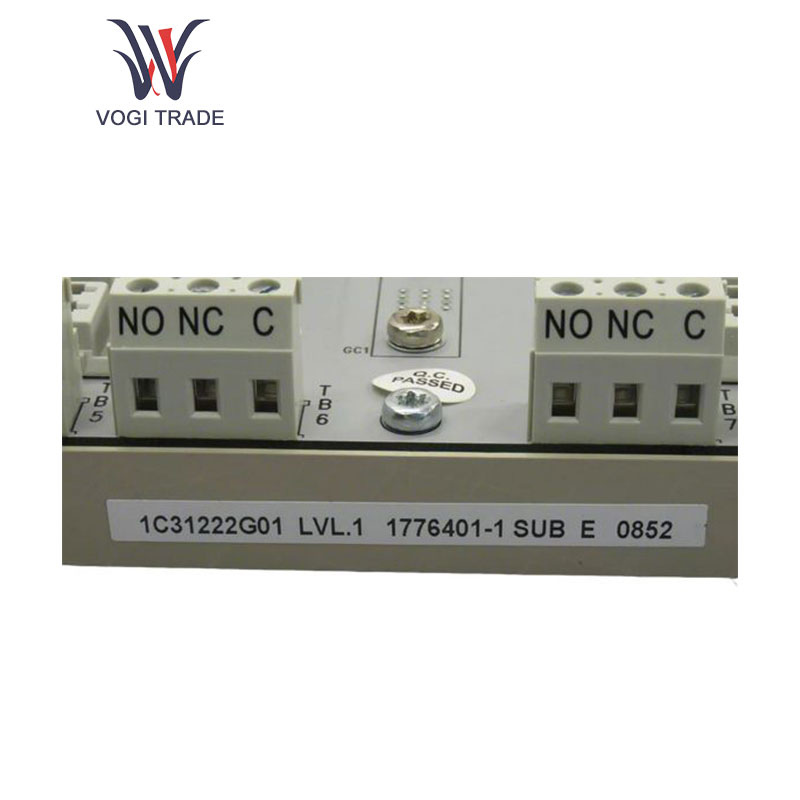

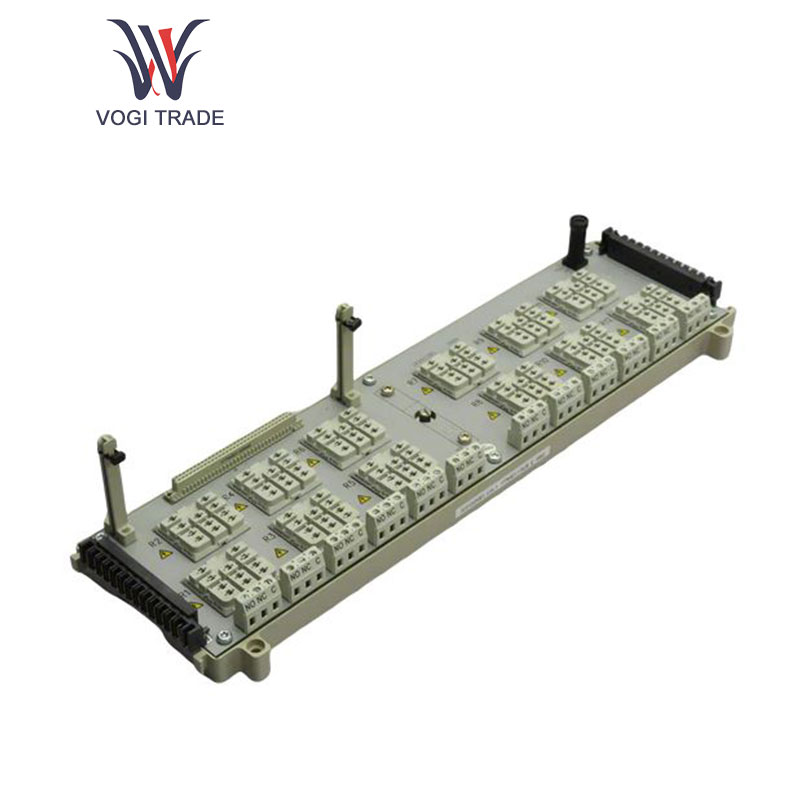

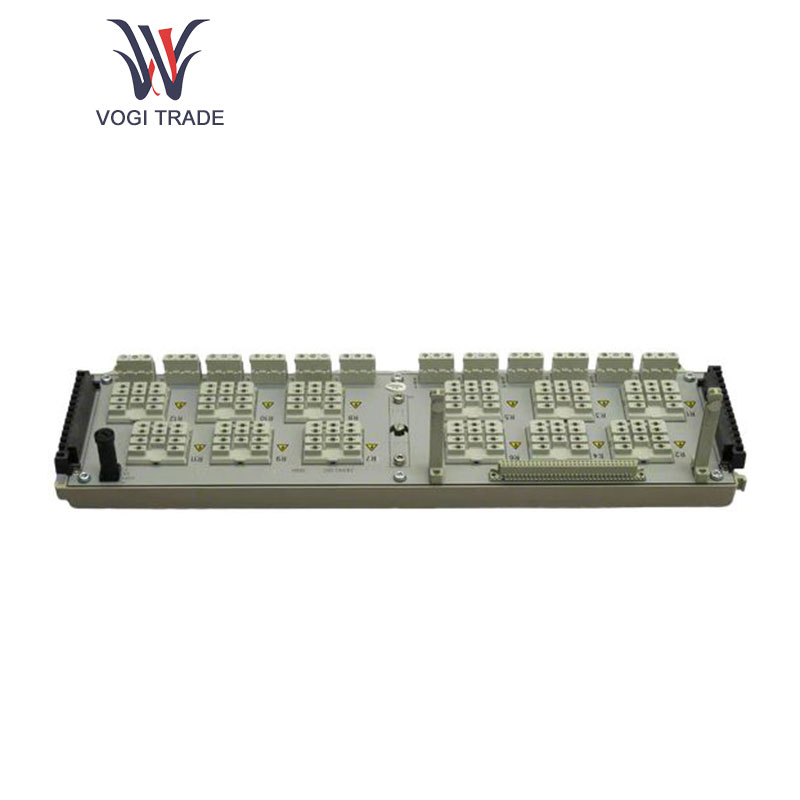

Westinghouse 1C31222G01

Details

Westinghouse 1C31222G01 can perform a large amount of data operations, and is used for data collection, storage, analysis, and various logical judgment and calculation operations.

Specification

Input voltage: 24 VDC

Number of output channels: 16

Communication protocol: Modbus

Operating temperature range: -20℃ to 70℃

Output voltage range: 0 to 24 VDC

Maximum current per channel: 0.5A

Response time: <5 ms

Protection function: with overcurrent and overvoltage protection

Features

Good performance: The data transmission speed at the Ethernet interface for the Westinghouse 1C31222G01 can be as much as 100Mbps or even higher! Compared to many same type modules, the Westinghouse 1C31222G01 is much faster in data transmission. Therefore, it could transmit information from the industrial site to the control center more timely, achieving rapid response and accurate control over the production process, with an extreme short input-output channel response time of, usually, microseconds, and performs better at the processing of high-speed signals, thus ensuring real-time and accuracy of the control system.

Real-time monitoring and diagnosis: Westinghouse 1C31222G01 is able to conduct the real-time monitoring, and the status information of each input and output channels can be displayed in real-time, which allows users to be informed timely, thus being able to react swiftly. Besides, Westinghouse 1C31222G01 has a fault diagnosis function. When the fault occurs in the system, pinpointing its location and evaluation of the failure restore time can be provided fast, which enables an improvement on the maintenance working environment.

Reliable data transmission: Westinghouse 1C31222G01 applies advanced communication technology and data verification mechanism for ensuring the accuracy and integrity of data during the transmission, effectively avoiding data loss or errors and ensuring a stable operation of industrial control systems.

Application

Power industry:

At the power plants, Westinghouse 1C31222G01 is used for monitoring and controlling various auxiliary equipment, such as keeping a running check on water supply pumps, blowers, induced draft fans, etc. Real-time acquisition of start-stop signals, fault alarm signals, etc. is normally done through digital input channels. When a fault signal occurs on a feedwater pump, the Westinghouse 1C31222G01 rapidly sends that information through the Ethernet communication interface to the power plant's central control system so passes will be taken to remedy the trouble, such as switching on standby pumps to ensure stable power generation operation at the plant. At the same time, the start and stop operations of these devices can be remotely controlled by means of its digital output channel to realize the automated management of the whole power plant auxiliary system.

Manufacturing:

In the automated production line of an automobile manufacturing plant, Westinghouse 1C31222G01 is responsible for controlling the coordinated work of various processing equipment and transmission equipment. For instance, it includes controlling the action sequence of the robot, monitoring the tool status of the processing machine tool, and managing the start and stop and the speed of the material conveyor belt. In the example of the production line for automobile body welding, Westinghouse 1C31222G01 is commanded by the control system to take action according to welding process parameter instructions; controls such welding parameters as welding current, voltage, welding time, and so on, in the welding robot; collects those status signals from the welding robot that reveal, for example, joint position and motor temperature; to ensure the welding process is conducted with accuracy and reliability and improves automobile production speed and quality.

Food and Beverage:

In food and beverage production lines, Westinghouse 1C31222G01 controls and monitors the operation of the production equipment. For instance, in a beverage canning production line, Westinghouse 1C31222G01 monitors the operational status of the canning equipment, such as the position of the canning head, canning speed, liquid level detection, and so forth.Westinghouse 1C31222G01 collects this information through the input channel, and per the preset parameters of the canning process, it controls, by means of the output channel, the flow of the canning pump, the opening and the closing of the valve, and the speed of the conveyor belt; thus ensuring the accuracy and stability of beverage canning and improving product quality and production efficiency, while ensuring that the entire production process adheres to hygiene standards and safety requirements.
