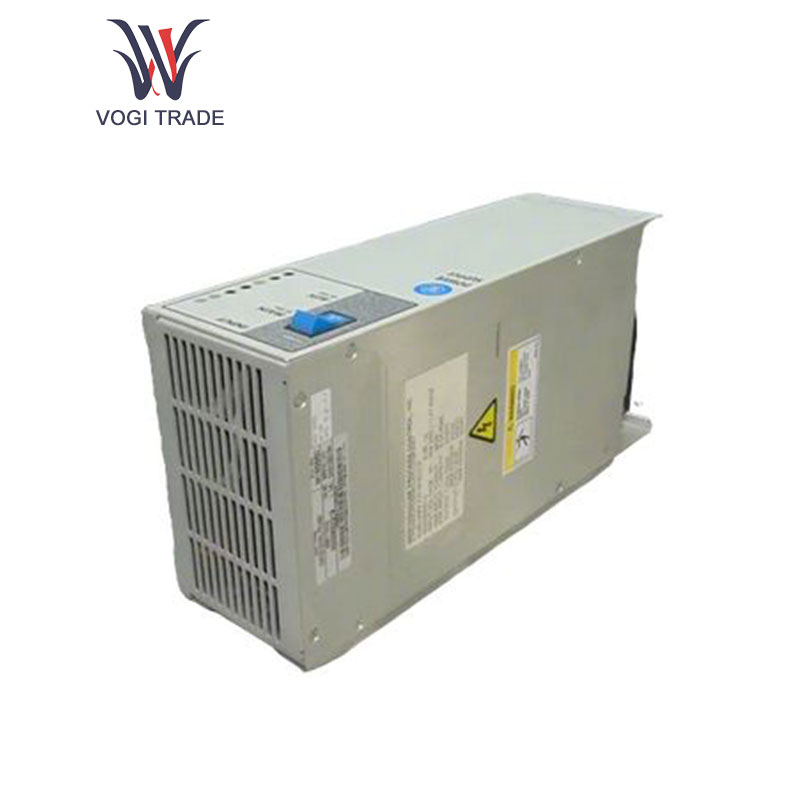

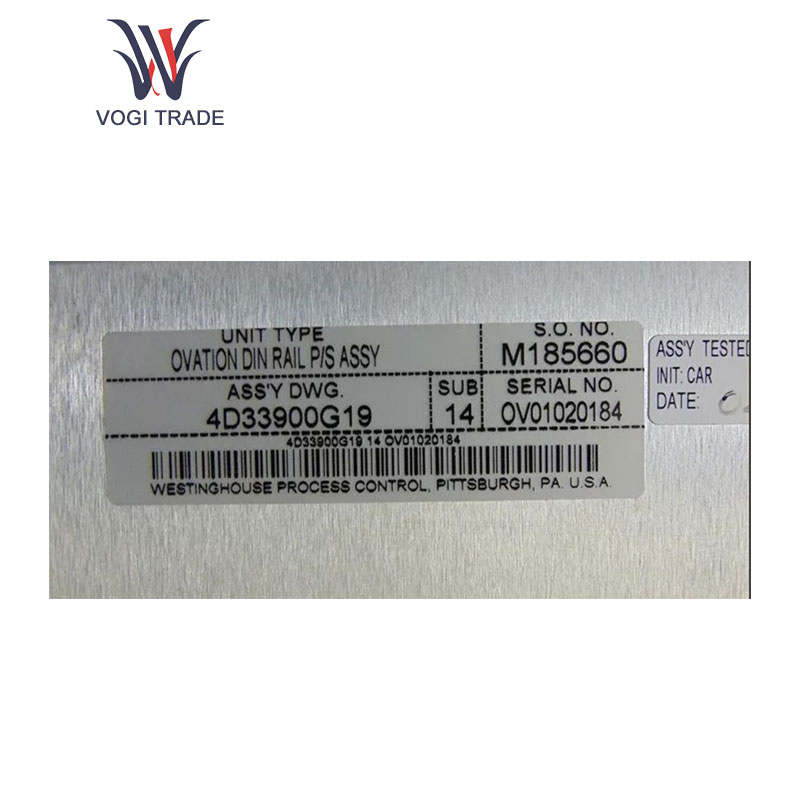

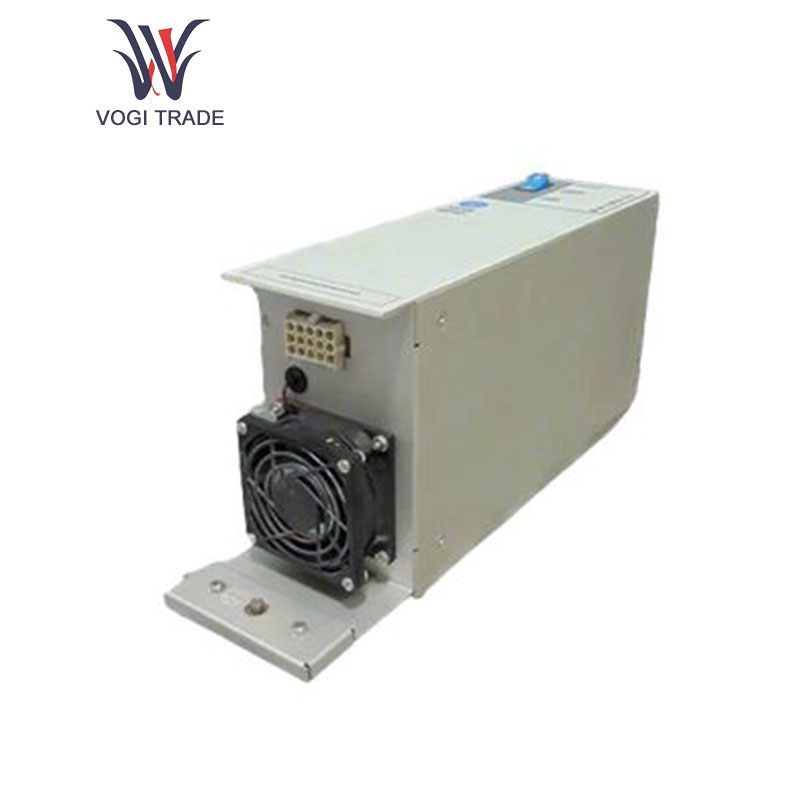

Westinghouse 4D33900G19

Details

Westinghouse 4D33900G19 Product Introduction

Usage Parameters

Working Voltage: The working voltage range is 85~264VAC, and the frequency is 47~63Hz. It has a wide voltage and frequency range adaptability, can work stably under different power supply environment conditions, and can reduce or even eliminate the impact of power supply fluctuations on the equipment.

Output voltage and power: Two 24V DC outputs, the maximum output 1 is 300 watts, and the maximum output 2 is 200 watts, which can provide stable and reliable DC power for external devices and effectively adapt to the power supply of various devices with different power requirements.Number of channels: 16 digital outputs, which can control multiple external devices or actuators at the same time, realize parallel control of multiple objects, and improve control efficiency and system integration.

Product function

Power supply function: 4D33900G19, as an auxiliary power supply module, converts the input AC voltage into a stable DC voltage output, and provides reliable power support for Westinghouse related control systems or other equipment that requires 24V DC power supply, so that it can work normally.

Digital signal output function: 16-channel digital output function can realize precise control/transmission of various digital signals, control the switch status of solenoid valves, relays, indicator lights, etc., control the start and stop, alarm and other actions of external equipment by outputting high and low level signals, and realize automatic control of various equipment in the industrial field.

Multiple control methods: 4D33900G19 supports control and parameter reset through serial bus, external control signal, front-end relay module button, etc. Users can choose the control method according to the specific application scenario and control requirements, and operate the equipment flexibly, conveniently and accurately.

Status monitoring and alarm function: It can monitor its own working status and output signal status in real time and alarm. Once a fault or abnormality occurs, it can issue an alarm in time to notify relevant personnel to take corrective measures, improve the reliability and safety of the system, and reduce production interruptions and losses caused by equipment failure.

Application scope

Industrial automation control system: 4D33900G19 is widely used in various industrial automation production lines such as automobile manufacturing, mechanical processing, food and beverage manufacturing, etc., to control and operate various motors, valves, conveyor belts, etc. on the production line, realize automatic control and monitoring of the production process, and improve production efficiency and product quality. The power system includes power plants, substations and other power stations, which provide stable DC power for protection devices, measurement and control devices, communication equipment, etc. It can also be used as a control signal output module for remote control and status monitoring of power equipment to ensure the safe and stable operation of the power system. Petrochemical: In the petrochemical production process, control the start and stop of chemical equipment such as pumps, compressors, mixers and valve movements to ensure the safe, stable, efficient and reliable operation of the chemical production process, and provide power support for field instruments and control equipment.

Water treatment: Water treatment plants can control water treatment equipment such as the start and stop of dosing pumps and the opening and closing of valves. Through automated control, water quality and water quality management can be better controlled to ensure that the effluent water quality meets the specified standards.

Intelligent buildings: Control systems can be implemented in intelligent buildings, including instructions for environmental behaviors such as air conditioning systems, ventilation systems, and lighting systems, to achieve intelligent control of building environmental behaviors, rationally use energy, improve building comfort, and save energy.
