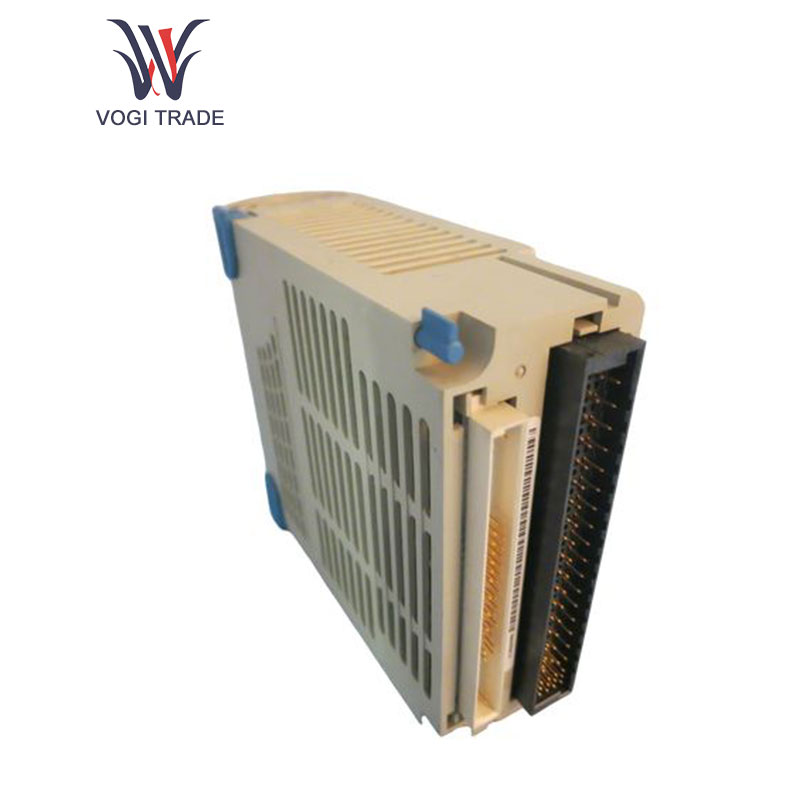

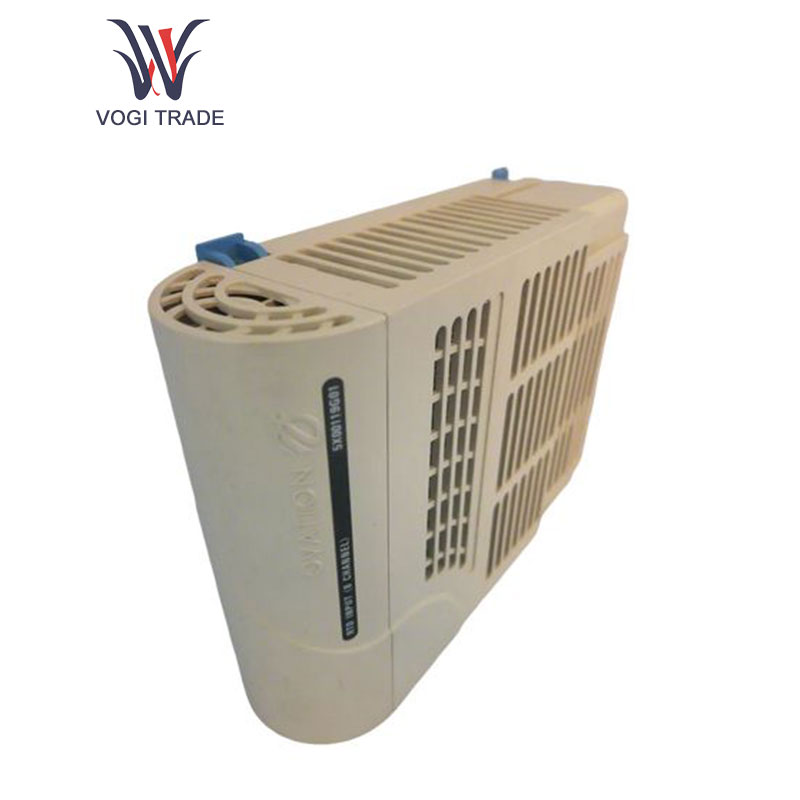

Westinghouse 5X00119G01 Product Introduction

General Specifications

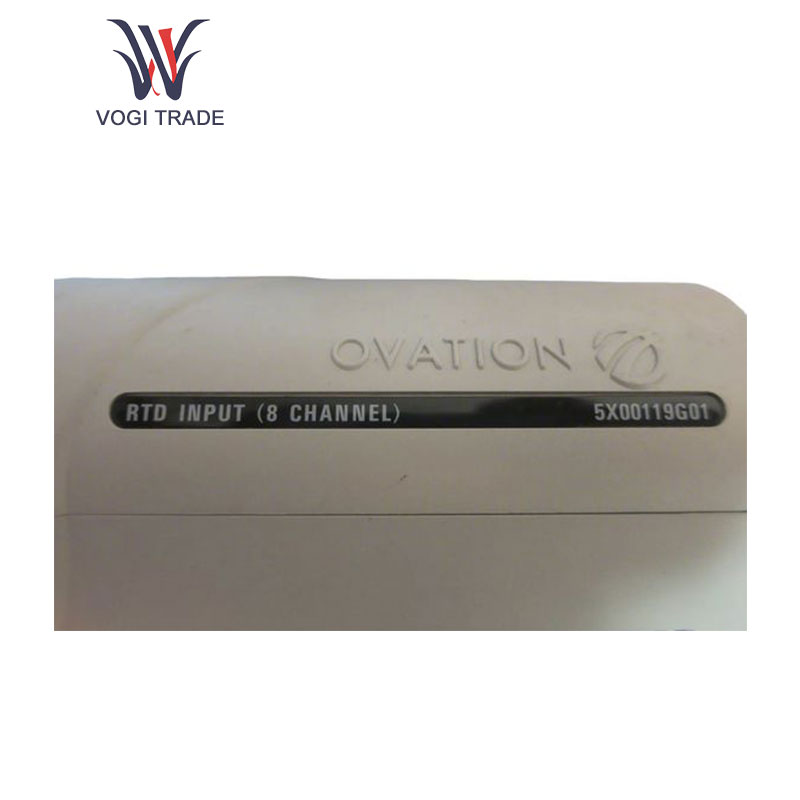

Number of channels: 5X00119G01 is an 8-channel RTD thermal resistor input module that can collect 8 thermal resistor sensor signals at the same time to meet the needs of multi-point temperature measurement in industrial sites.

Signal type: Designed specifically for receiving thermal resistor sensor signals, it can adapt to common thermal resistors such as Pt100 and Pt1000, and can accurately convert the resistance change of the thermal resistor into an equivalent temperature value to achieve accurate temperature measurement and monitoring.

Working voltage: The commonly used working voltage is 24V. The universal working voltage level can fully match the power supply of most industrial control systems, without the need for special power supply equipment, providing a simpler choice for the power supply design and wiring of the system.

Product function

Temperature measurement and acquisition: High-precision measurement and acquisition of the temperature signal sensed by the thermal resistor sensor, converting the temperature physical quantity into a digital signal that can be processed by the control system, providing accurate data support for temperature monitoring and control of industrial processes, and can be widely used in various industrial occasions that require precise temperature control, such as reactor temperature monitoring and pipeline temperature monitoring in the chemical, electric power, pharmaceutical and other industries.

Signal conditioning and conversion: Conditioning and conversion of the input thermal resistance signal, including amplification, filtering, linearization, etc., can effectively improve the quality and stability of the input signal, reduce interference and errors in the signal transmission process, ensure the accuracy and reliability of the measurement results, and enable the control system to obtain accurate temperature data, so as to further control and adjust the temperature.

Data transmission and communication: With reliable data transmission function, the collected temperature data can be transmitted to the central control system or other related equipment through the standard communication interface to achieve real-time monitoring and remote monitoring of field temperature data. The multiple data transmission protocols it supports (such as industrial Ethernet, Profibus, etc.) make it easier to integrate into the control systems of different manufacturers, thereby improving the compatibility and openness of the system.

Fault diagnosis and alarm: The built-in fault diagnosis function can monitor its own working status and abnormal conditions of the input signal in real time. By early detection of problems such as sensor damage or open circuit/short circuit faults, an alarm signal can be issued to notify relevant personnel to take corrective measures to avoid production accidents or equipment damage due to abnormal temperature monitoring, thereby improving the safety and reliability of the system.

Application

Chemical industry: In the chemical manufacturing process, quite a few reactions are related to temperature. Temperature changes can affect the quality and efficiency of production. Standard Westinghouse 5X00119G01 can be used to monitor the temperature of reactors, heat exchangers, pipeline trunks and other equipment to ensure that the temperature conditions of chemical production are controllable and appropriate, and to ensure the quality and safety of products.

Power industry: used for monitoring of generators, transformers, boilers and other equipment in power plants: to detect overheating hazards and implement equipment safety and stability in accordance with the law;

For example, generator stator winding monitoring can prevent insulation damage and comprehensive failures caused by overheating, thereby ensuring power supply reliability.

Pharmaceutical industry: The fermentation process, drying process and sterilization of drugs require strict temperature control. Products implement strict and effective temperature monitoring and control in these production stages to ensure the quality of drug production under very specific and strict quality standards.

Food and beverage industry: can be used for temperature control and monitoringIn the food processing process, such as baking, sterilization, refrigeration, etc., to ensure that the food is delicious and meets the standards. For example, when baking bread, the oven temperature is precisely controlled to understand how the bread should be baked; the kneading process of the beverage is controlled to ensure the sterilization temperature and time, thereby ensuring the hygiene and safety of the beverage.
