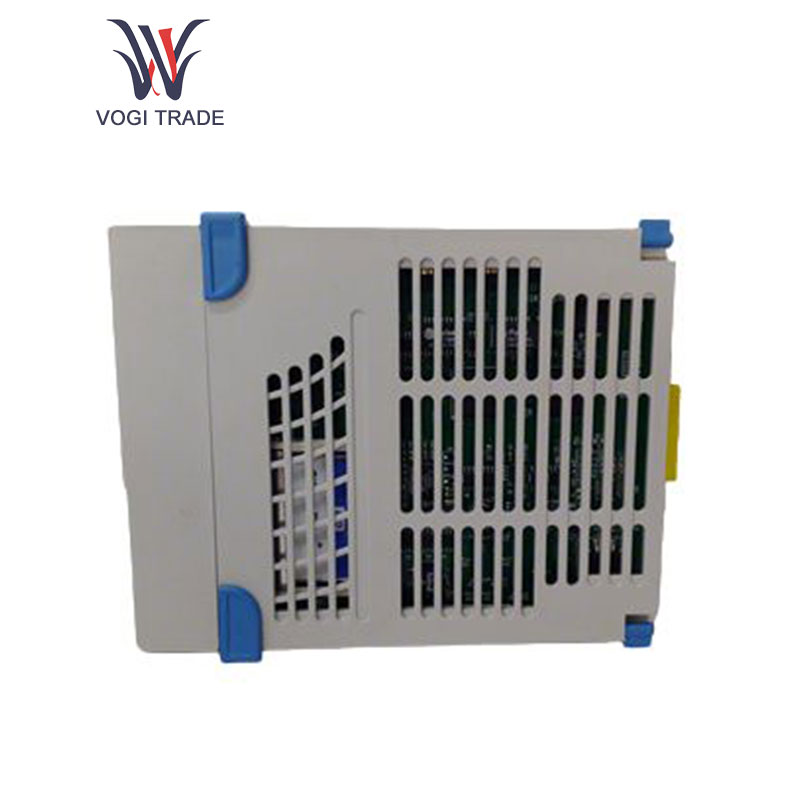

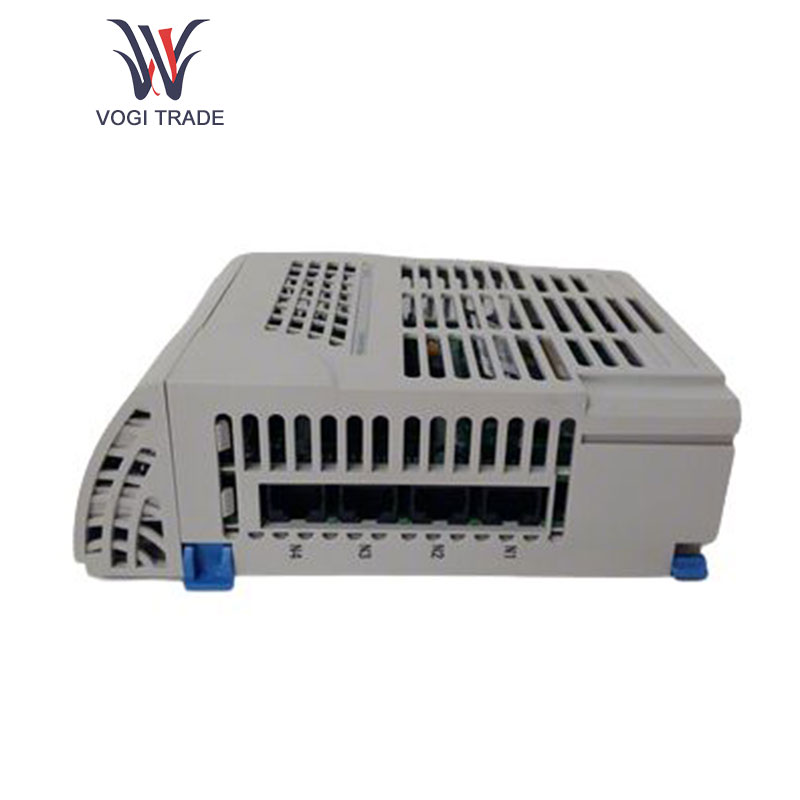

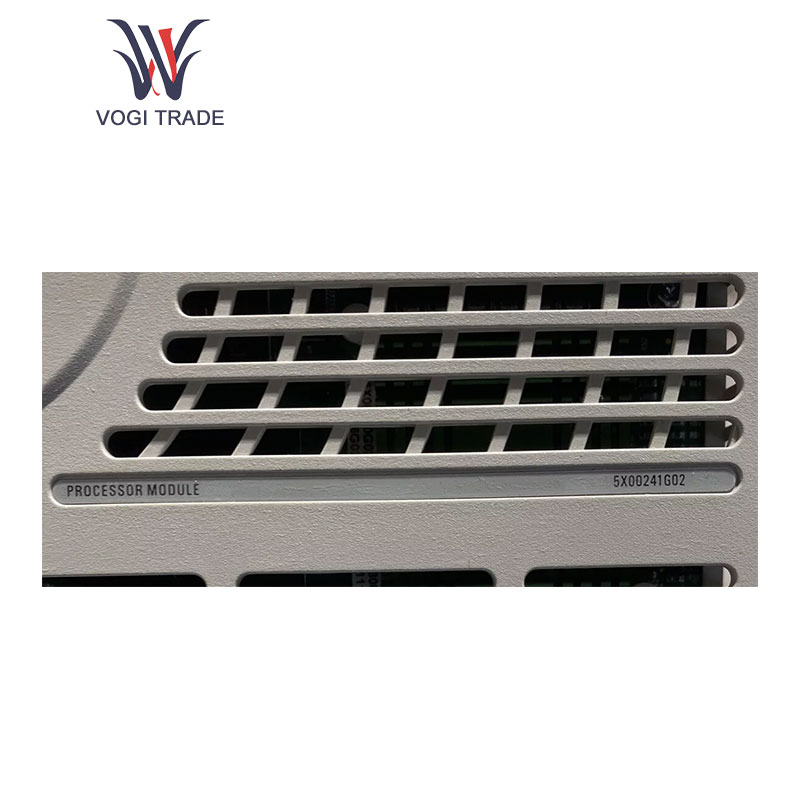

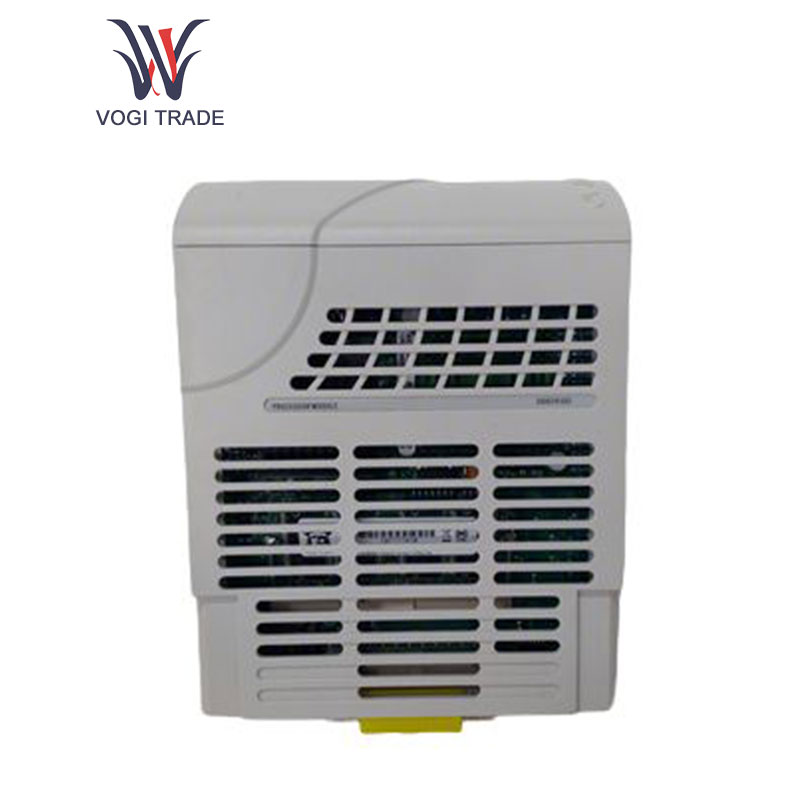

Westinghouse 5X00241G02

Details

Westinghouse 5X00241G02 Product Introduction

Working Parameters

Working Voltage: Usually 12 or 24 V DC (Dc). The input power is connected through wiring inductance; the inductance is less than 23 uH, using a certified power supply, the open circuit voltage (U) is not less than 12.6 volts DC, and the inductance (L) is less than 23 uH (including wire inductance).

Signal Type and Range: As an analog output module, it only analyzes the output analog signal. Although the exact details such as the signal range are not very clear and detailed, it is generally compatible with the output heirloom of the typical industrial signal range (such as 4 to 20mA, etc.), which is sufficient to meet the needs of various other physical quantity monitoring signals in different industrial environments.

Analog signal output: Its responsibility is to convert the digital signal sent by the controller into an appropriate analog signal and accurately transmit it to the corresponding controlled device or actuator, such as the valve throttle valve opening or motor speed in the industrial process, so that production can proceed smoothly and be accurately controlled according to the operation requirements.

Product Features

System compatibility and integration: As an important part of the Westinghouse Ovation DCS system, the 5x00241g02 module is compatible with other system components and seamlessly integrated. It works with controllers, input modules, communication modules, etc., allowing the development of wide-area distributed control systems to achieve comprehensive monitoring and automatic control of industrial processes.

Reliability and stability: 5X00241G02 uses high-quality electronic components and advanced manufacturing processes. It has high reliability and stability for long-term operation under harsh industrial conditions. At the same time, it has fault diagnosis and alarm functions, continuously monitors its own operating status, and once a fault or abnormal situation occurs, it will issue an alarm signal to notify relevant personnel to take measures, greatly reducing system downtime and maintenance costs.

Configuration flexibility: Supports flexible configuration. Users can use corresponding software tools or hardware jumpers to set module parameters according to specific industrial applications, determine the type and range of output signals, open or close device channels, etc., to complete various control tasks and process requirements, making the product more versatile and adaptable.

Application Scope

Power Industry: In power plants, 5X00241G02 can be used to output control signals, adjust the excitation current of generators, the speed regulating valve of turbines, achieve precise control of the power generation process, and ensure the stable operation of the power system and the stability of power quality.

Petrochemical: Widely used in flow control, temperature control, pressure control and other links in petroleum refining and chemical production. For example, in pipelines, control valves output signals to adjust the flow of oil or chemical raw materials; reactor thermostats adjust the appropriate temperature of synthetic reactions to improve product quality and production efficiency.

Pharmaceuticals: In the process of drug production, it can control the main parameters of pharmaceutical equipment such as temperature and pressure control, as well as dosage control in the process of drug packaging, to ensure that the entire production process meets the most stringent quality standards, meets process requirements, and ensures the quality and safety of drugs.

Food and Beverages: It can be used for temperature control, flow control, and component control in food processing. For example, on a beverage production line, the proportion and flow of beverage components can be accurately controlled; in the process of food baking, the temperature in the oven can be finely adjusted to ensure the consistency of the taste and quality of the food provided.

Water treatment: This enables you to control the operating parameters of water treatment equipment: you can change the speed of pumps in the treatment plant and manipulate the opening of valves to influence parameters such as water flow, water level and water quality, thus ensuring correct treatment processes.
